In line surface water sump.
The HYVOL in-line sump is a specialized drainage component installed directly within your channel run. It functions as a collection point that intercepts debris, sediment, and silt before they enter the main pipework, ensuring optimal high-flow water management and preventing system blockages.
Application: Residential, Commercial and Industrial
Dimensions: 500mm (L) x 200mm (W) x 500mm (H).
Catchment capacity: 20 litre
Load Class: AS/NZS 3996 Class B (80kN) / AS/NZS 1170 Type G.
Material: Grade 8 Glass-Fibre Reinforced Concrete (GRC) — Proudly Formulated and Cast In New Zealand.

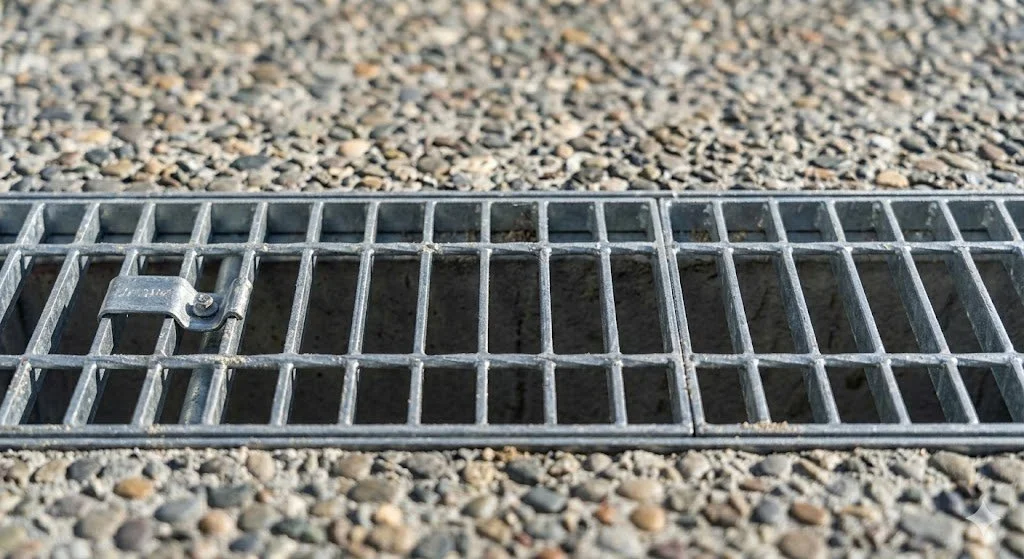

Grate Design: 25mm x 5mm Load bars; 30mm center-to-center pitch.
Unit Mass: 25 kg
Direct-from-factory dispatch available nationwide. Custom sizing runs available upon request.
