200mm wide Class B Surface Water Channel Drain.
The "Light Commercial Standard".

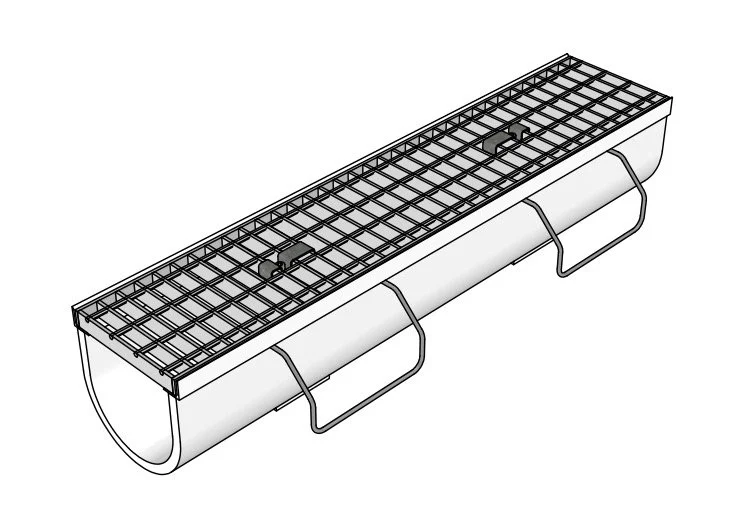

The HY 200 B is a Glass Fibre Reinforced Concrete (GRC) channel drainage system designed for medium to large catchment areas in residential and light commercial zones. The integrated "Lugged Angle" anchoring system ensures the unit becomes a monolithic part of the concrete slab, providing superior stability compared to plastic alternatives.
Application: Wide driveways, light commercial car parks, and urban precincts.
Dimensions: 1000mm (L) x 200mm (W) x 200mm (H).
Catchment capacity / Flow Rate: 500m² / 13.5 Litres per second.
Load Class: AS/NZS 3996 Class B (80kN) / AS/NZS 1170 Type G.
Material: Grade 8 Glass-Fibre Reinforced Concrete (GRC) — Proudly Formulated and Cast In New Zealand.
Grate Design: 25mm x 5mm Load bars; 30mm center-to-center pitch.
Unit Mass: 28 kg
Download spec sheet
Direct-from-factory dispatch available nationwide. Custom sizing runs available upon request.
